Komatsu GD530A GD530AW Series Motor Grader Manual

Komatsu GD530A GD530AW Series Motor Grader Manual

Complete service repair workshop manual for the:

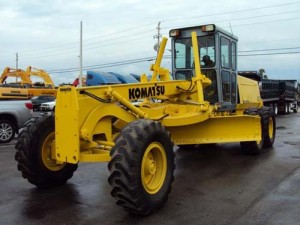

Komatsu GD530A GD530AW Series Motor Grader

  • GD530A-1-1E
  • GD530A-2A-2B-2C-2E
  • GD530AW-1
  • GD530AW-2A-2B-2E-2C
  • GD530A-2EY
  • GD530AW-2EY
  • GD530A-2BY
  • GD530A-2CY
  • GD530AW-2BY
  • GD530AW-2CY

The same manual heavy machinery mechanics use which contains all the information needed to perform service and repairs on the grader  Complete step by step information testing, adjusting, dis-assembly, assembly, electrical, servicing and preventative maintenance.  The GD530A(W) mounts the KDC610, 114E series or 102 series diesel engine.  For detailed manual of the engine, refer below (sold separately):

PDF Manual. Instant Download. No Shipping. $19.99MORE INFO
Komatsu GD530 Manual$119.99
